Electric bikes, or e-bikes, have become increasingly popular as a sustainable and convenient way to get around. One key aspect of e-bike ownership is knowing how to recharge the battery, which starts with recognizing the charging port. Unlike the uniform charging systems found in devices like phones or computers, e-bike ports differ significantly because of variations in battery power needs, current flow, and choices made by different makers. This diversity results in chargers that usually can't be swapped between various brands or models. Reports suggest there are roughly 15 standard connector styles commonly seen in the e-bike sector. This piece delves into the primary charging ports used for e-bike batteries, detailing their features, benefits, and typical uses to assist users in navigating compatibility and potential improvements.

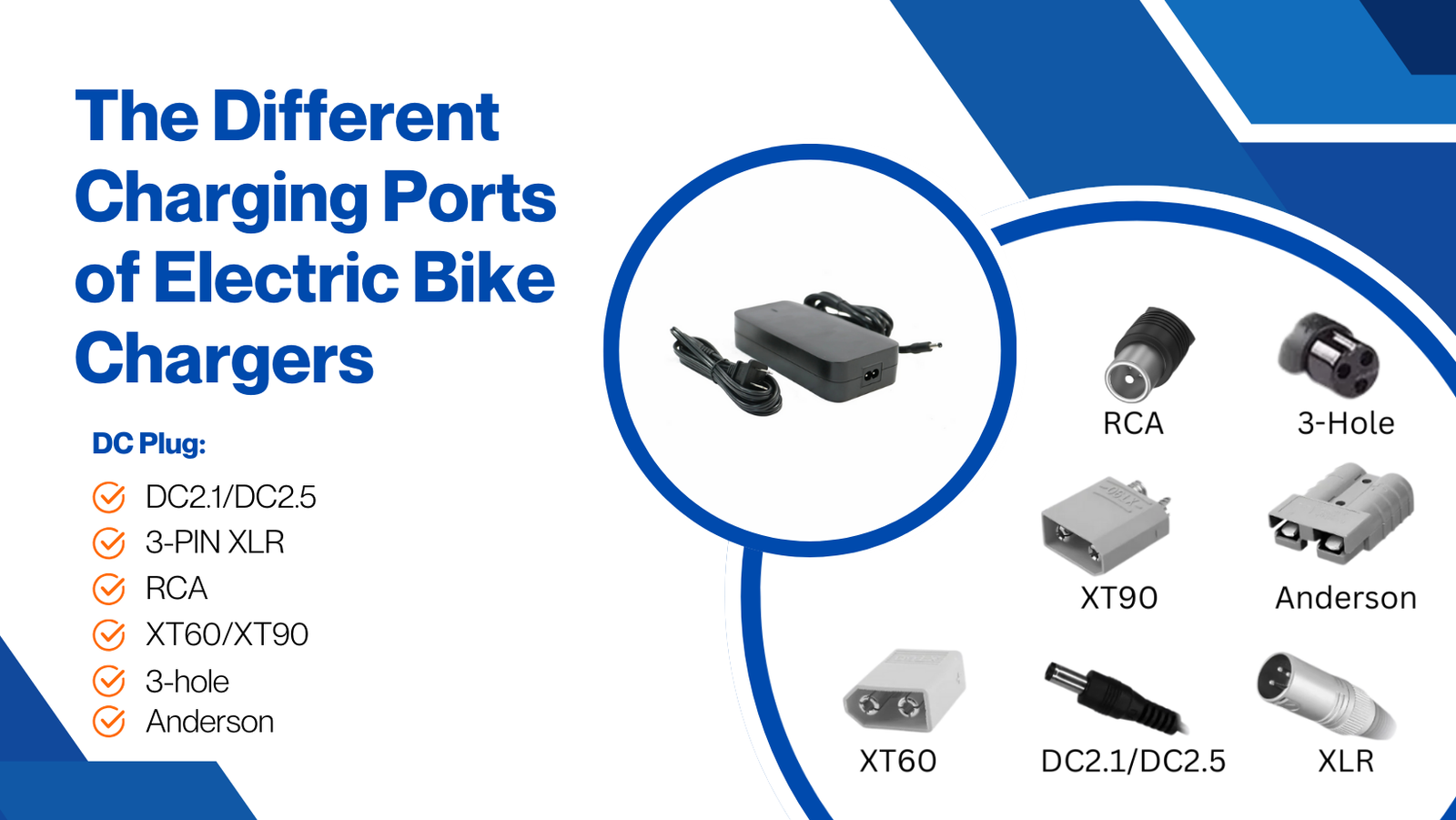

Common Types of E-Bike Charging Ports
E-bike charging interfaces are built to deliver electricity securely from the power source to the battery, avoiding issues like electrical shorts or harm. They vary in form, dimensions, and connector setups. Here, we outline the most typical varieties.
1. DC Barrel Connectors
DC barrel connectors, sometimes called coaxial or tube-shaped plugs, rank among the most basic and prevalent options for e-bike charging. These feature a cylindrical outer shell with a central pin, often with an external diameter of 5.5mm and an internal one of 2.1mm or 2.5mm, such as 5.5x2.1mm or 5.5x2.5mm.
- Characteristics: They maintain polarity for proper alignment, typically with the outer part as negative and the inner as positive. Certain models include securing features to hold them in place.
- Advantages: They're cost-effective, small in size, and straightforward to swap out. They work well for moderate power demands, suiting beginner-level e-bikes.
- Disadvantages: Repeated connections can cause degradation, and they might not manage elevated currents without getting too hot.
- Common Use: These appear on affordable e-bikes from companies like Rad Power Bikes or standard versions. They're also employed in electric scooters and similar compact vehicles.
Conversion pieces exist to adapt barrel plugs to alternative formats, increasing their adaptability.
2. XLR Connectors
XLR connectors, initially designed for sound systems, have been repurposed for e-bike power delivery thanks to their sturdy construction. They generally have 3 or 4 pins within a round casing.
- Characteristics: The pins carry electrical charge (positive and negative) and occasionally signals for advanced functions like tracking battery status. A standard 3-pin XLR might use two for power and one for earthing.
- Advantages: Exceptionally tough, resistant to elements, and able to support higher voltages (up to 60V or beyond) and amperages. They fasten reliably, minimizing unintended separations.
- Disadvantages: Larger than barrel types and not as ubiquitous in everyday gadgets, potentially making spares tougher to locate.
- Common Use: Frequently seen in mid-tier e-bikes, particularly those with detachable batteries, like offerings from Juiced Bikes or custom assembly kits. Their background in audio means compatible adapters are common.
3. Anderson Powerpole Connectors
Anderson Powerpole connectors are flexible, heavy-duty plugs valued for their dependability in tough scenarios.
- Characteristics: Rectangular in shape with flat terminals that can be arranged in multiple configurations (single or multiple poles). They commonly use red for positive and black for negative to clarify connections.
- Advantages: Great for substantial current loads (up to 45A or higher), resistant to shaking, and adjustable. Assembly doesn't need welding.
- Disadvantages: Pricier and necessitate particular tools for crimping. They may not be user-friendly for novices.
- Common Use: Widespread in powerful e-bikes, electric motorbikes, and renewable energy applications. Firms like Luna Cycle favor them for durability in rugged terrains.
4. XT60 and XT90 Connectors
XT60 and XT90 connectors stem from remote-control hobbies but have gained traction in e-bike charging for their performance.
- Characteristics: Shaped like bullets with gold-coated contacts; XT60 manages up to 60A steadily, whereas XT90 handles 90A. They have a yellow plastic cover and are designed to avoid incorrect polarity.
- Advantages: Minimal electrical resistance to reduce energy waste, space-saving, and tolerant of heat. Soldering is simple, and they connect firmly.
- Disadvantages: Disconnecting might require aids, and excessive handling could erode the contacts.
- Common Use: Typical in e-bikes using lithium-based batteries, especially personalized ones or those from producers like Bafang. They excel in rapid recharging situations.
5. Bullet Connectors
Bullet connectors are straightforward, direct-link plugs featuring a male bullet end and female receiver.
- Characteristics: Offered in diameters such as 3.5mm or 4mm, frequently with gold plating for enhanced conduction. They can be solo or doubled for positive and negative paths.
- Advantages: Cheap, light, and good for fast hookups. They cope with average currents effectively.
- Disadvantages: Not as stable as lockable kinds; movement might lead to detachments. Less suitable for exterior environments without extra safeguards.
- Common Use: Observed in basic e-bikes and often as output points instead of main inputs. They're favored in homemade e-bike modifications.
6. RCA Connectors
RCA connectors, best known from audio and video applications, have found a niche in e-bike charging systems, particularly for simpler setups.
- Characteristics: These are coaxial plugs with a central pin surrounded by a metal ring, often in a single configuration for DC power. Variants may include larger sizes like 10.5mm for higher power handling, and they sometimes come with dust covers that swing aside during use.
- Advantages: Inexpensive, widely available due to their use in other electronics, and suitable for low to moderate amperage (around 2A to 5A). They provide a straightforward connection with good contact reliability.
- Disadvantages: Limited current capacity compared to heavier-duty options, and they can be prone to oxidation or loose fits over time without proper maintenance.
- Common Use: Commonly found on entry-level electric scooters and bikes with 24V to 48V systems, especially lithium batteries. Brands like those offering budget models or conversion kits often incorporate them for their simplicity.
7. 3-Pin (Three-Hole) Connectors
3-pin connectors, often referred to as three-hole ports, are circular sockets with three openings designed for secure power transfer in e-bikes.
- Characteristics: Typically featuring a round housing with three pins or holes (positive, negative, and sometimes a ground or unused pin), these may include waterproof covers or inline jacks. They handle 2 to 3 wires and are built for durability in outdoor conditions.
- Advantages: Offer a balanced mix of security and ease, with weather resistance and the ability to support moderate voltages (up to 48V) and currents (up to 10A). The extra pin can provide added safety features like grounding.
- Disadvantages: May require specific adapters if not standardized, and the third pin is sometimes unused, which can confuse users during wiring.
- Common Use: Prevalent in mid-range e-bikes and scooters, such as those from Lectric or generic battery packs. They're ideal for systems where a simple yet robust charging interface is needed, often seen in replacement parts markets.
8. Proprietary and Brand-Specific Ports
Numerous e-bike producers opt for unique ports to align with their proprietary setups.
- Characteristics: These might involve three-pin or single-pin layouts, like Bosch's boxy interface or Yamaha's built-in ones. Some mimic RCA styles or JST connectors (tiny, multi-pin for lower voltages).
- Advantages: Tailored to the vehicle's battery control system, frequently incorporating intelligent safeguards against overcharging.
- Disadvantages: Restricts choices to manufacturer-supplied items, which can be expensive. Conversion options are scarce.
- Common Use: Premium e-bikes from labels like Specialized, Trek, or Giant. For instance, Shimano Steps setups employ custom plugs for smooth compatibility.
Additional rarer options encompass RCA connectors (basic single-pin for simple charging) and USB ports (mostly for add-ons like illumination, not core battery replenishment).
Factors to Consider When Choosing or Using Charging Ports
In handling e-bike power supplies, it's essential to align the port style, voltage (such as 36V or 48V), and current rating to prevent issues. Speedy chargers could demand ports that support greater flows, like XT90. Moreover, think about sealing against weather for external use and the presence of communal stations, which could offer multi-port adapters. Talks continue about unifying e-bike charging akin to larger electric vehicles, yet the field stays diverse owing to differing battery requirements.
