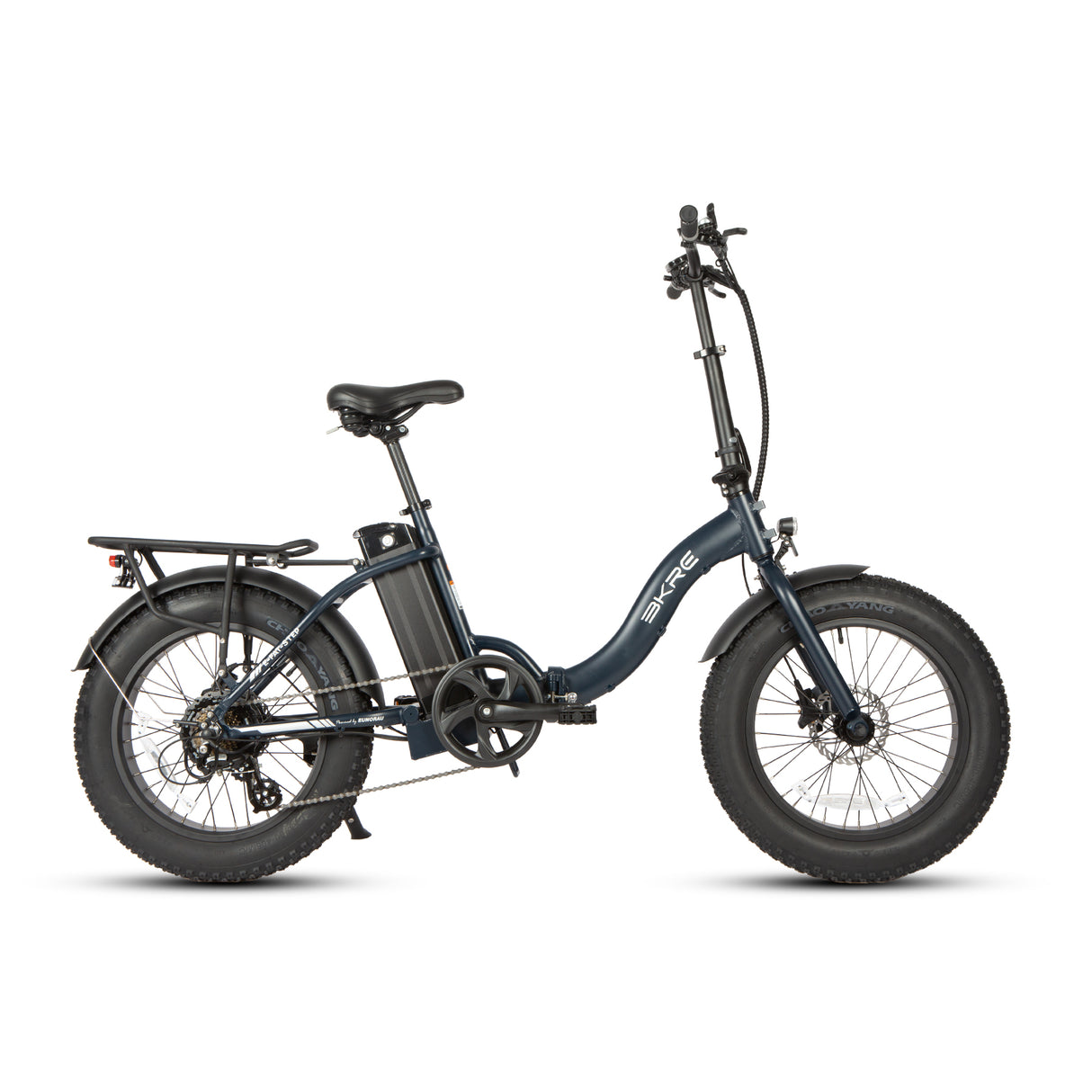

E-FAT-STEP

$1,299.00 $1,699.00
Shipping calculated at checkout.

Color: Vibrant Orange

Free Gift: Rear Rack with Fenders (value of $USD100+)

Specification

Specification

  • Battery: 48V 13Ah
  • Range: 40-50 Miles
  • Motor: 48V 500W Brushless hub motor with 80 N.m torque
  • Total Payload Capacity: 330 lbs
  • Recommended Rider Heights: 5'6" ~ 6'1"
  • Maximum Speed: 20 MPH
  • Charger: US standard 2.0 A smart charger
  • Controller: 48V 20A
  • Display: K-LCD5 Panel
  • Weight: 63.9 lbs / 29kgs
  • Pedal Assist Intelligent: 0~5 level pedal assist
  • Box Dimensions: (cm) 157L x 37.5 W x 81.5 H

Components

  • Tires: CHAOYANG Fat Tires 20" x 4.0"
  • Brake: Hydraulic disc brakes levers with motor cutoff switch
  • Rear Light: Super bright tallight controlled via display
  • Shifter: Shimano 7 speed gear shift system
  • Brake Rotor: Promax 160 MM Disc Brake
  • Throttle: Thumb Throttle
  • Crank: 170mm forged Aluminum Alloy
  • Freewheel: Shimano Altus 7 Speed Rear Derailleur
  • Handlebar: Adjustable stem for comfort
  • Frame Material: Aluminum alloy 6061
  • Stem: Telescoping Height, 260mm Base with 140mm Extension, 10mm Spacer, 25.4mm Clamp Diameter
  • Pedal: High-Quality Folding Nylon Pedals
  • Front Light: LED Light
  • Saddle: Comfort Saddle, Height to Ground 32.6"-39.8"
  • Tool: Included
  • Chainring: 48T chain-wheel crank
  • Rims: 20inch Black Alloy

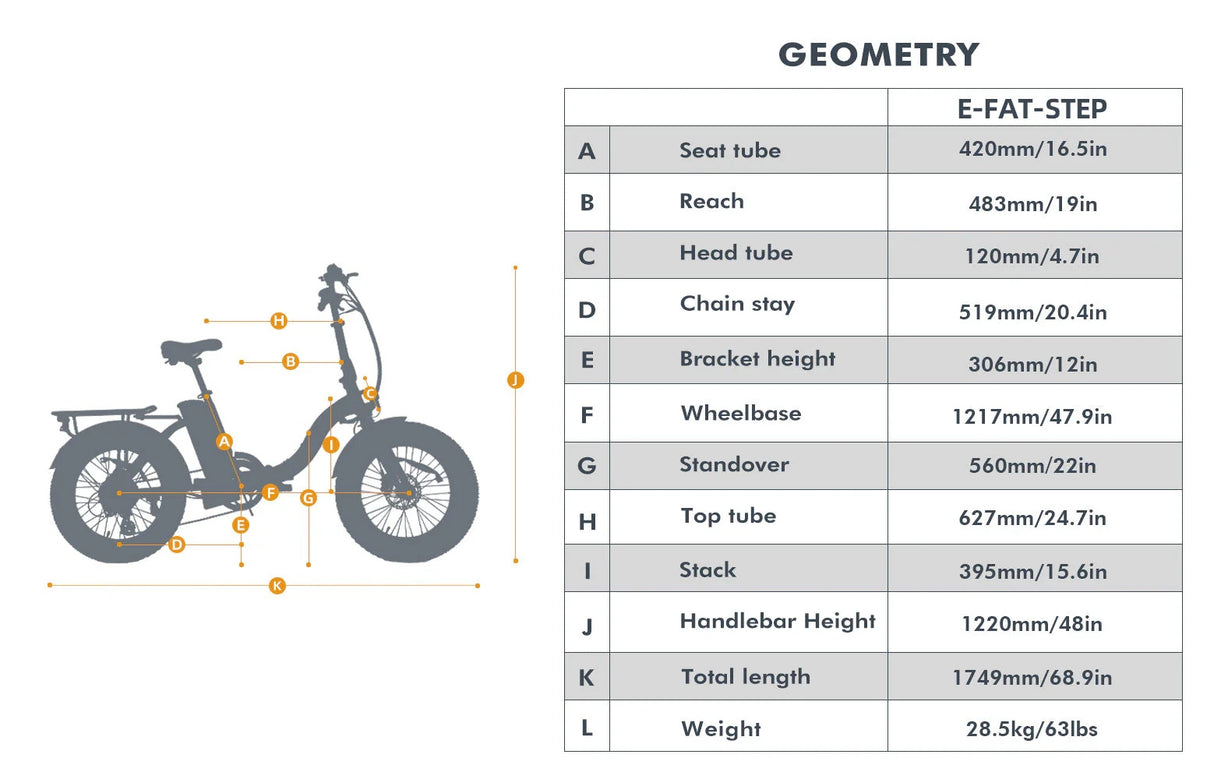

GEOMETRY

Free Shipping

US Warehouse Directly. BKRE Free shipping to the lower 48 states in the US. We do not ship to PO boxes or APO.

UL2849 Certification

Safety Certified in Accordance with UL 2849

2-Year Warranty

All BKRE bikes, powered by EUNORAU, come with a 2-year EUNORAU warranty for the original owner against all manufacturing defects.

Return

7-Day Return Policy

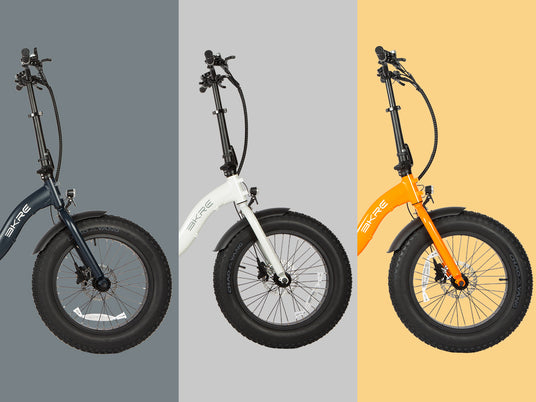

Infuse It with Color and Style!

There are 3 color options of E-FAT-STEP: midnight blue, pearl white, vibrant orange. Choose the one you like and ride in style.

Vibrant Rides in Every Shade
Chic Cycling for Joyful Journeys

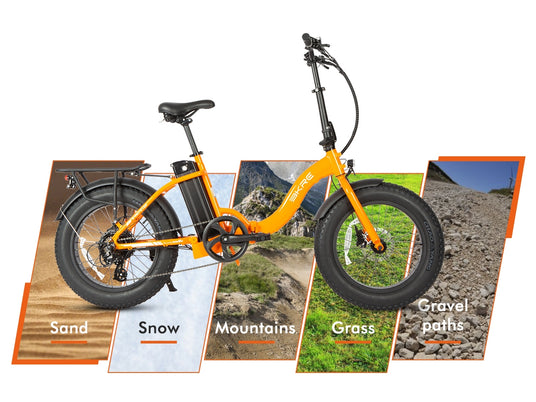

Fat Tire Folding Ebike for All Terrian

Whether it's traversing sandy beaches, snowy trails, mountain paths, cruising through parks, heading to the office, or riding on straight roads, the eBike equipped with 20*4.0 fat tires easily meets the challenge.

Foldable Frame

The E-FAT-STEP fits where most e-bikes can't. Just fold it up, stow it away, and unfold it when you're ready to ride.

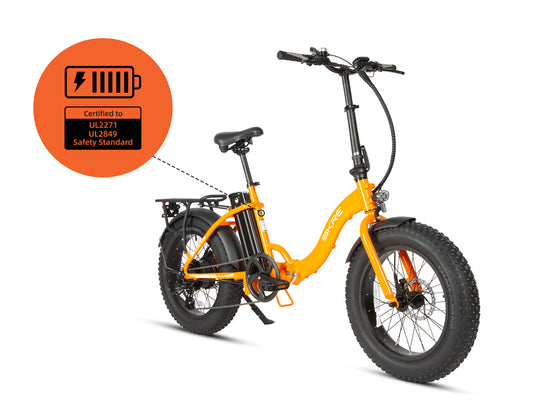

UL Certified for Safety: Ride with Confidence

The E-FAT-STEP electric bike has passed the UL 2849 certification, ensuring a safe and reliable riding experience for users, whether for city commuting or outdoor adventures. Its efficient electric drive system and user-friendly design make every ride more enjoyable and effortless.

Discover E-FAT-STEP

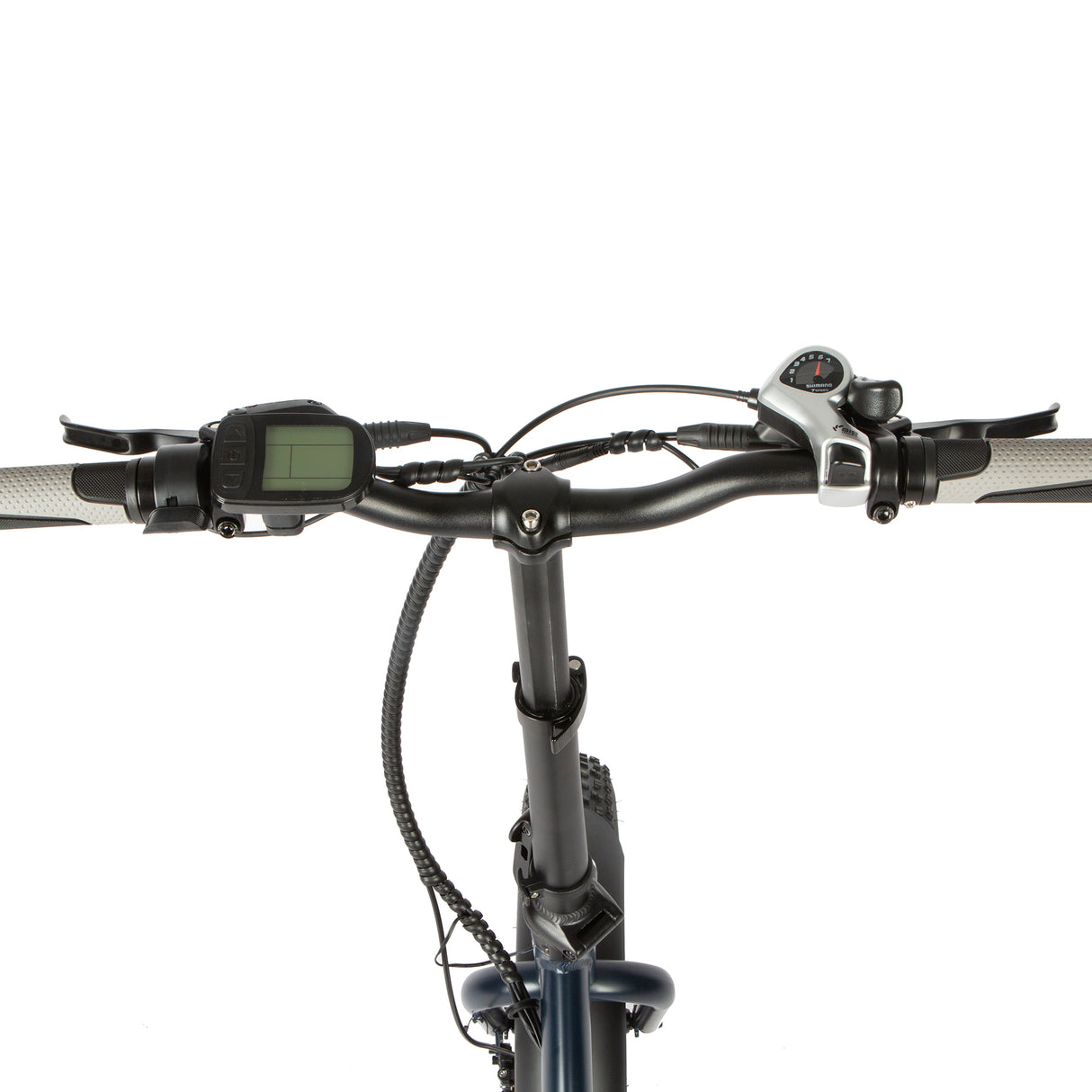

  • LCD Display

    Compact yet clear backlight display makes your eyes get all information immediately, like battery capacity, time, pedal assist level, speed, range. Simple is always great.

  • Comfortable Saddle

    Every fancy-memory of riding should have one comfortable saddle, Must-have makes your long-trip riding with less fatigue, more enjoyment

  • Powered by EUNORAU

    BKRE Folding Ebike combines EUNORAU advanced technology with proven reliability, offering a superior riding experience with every journey.

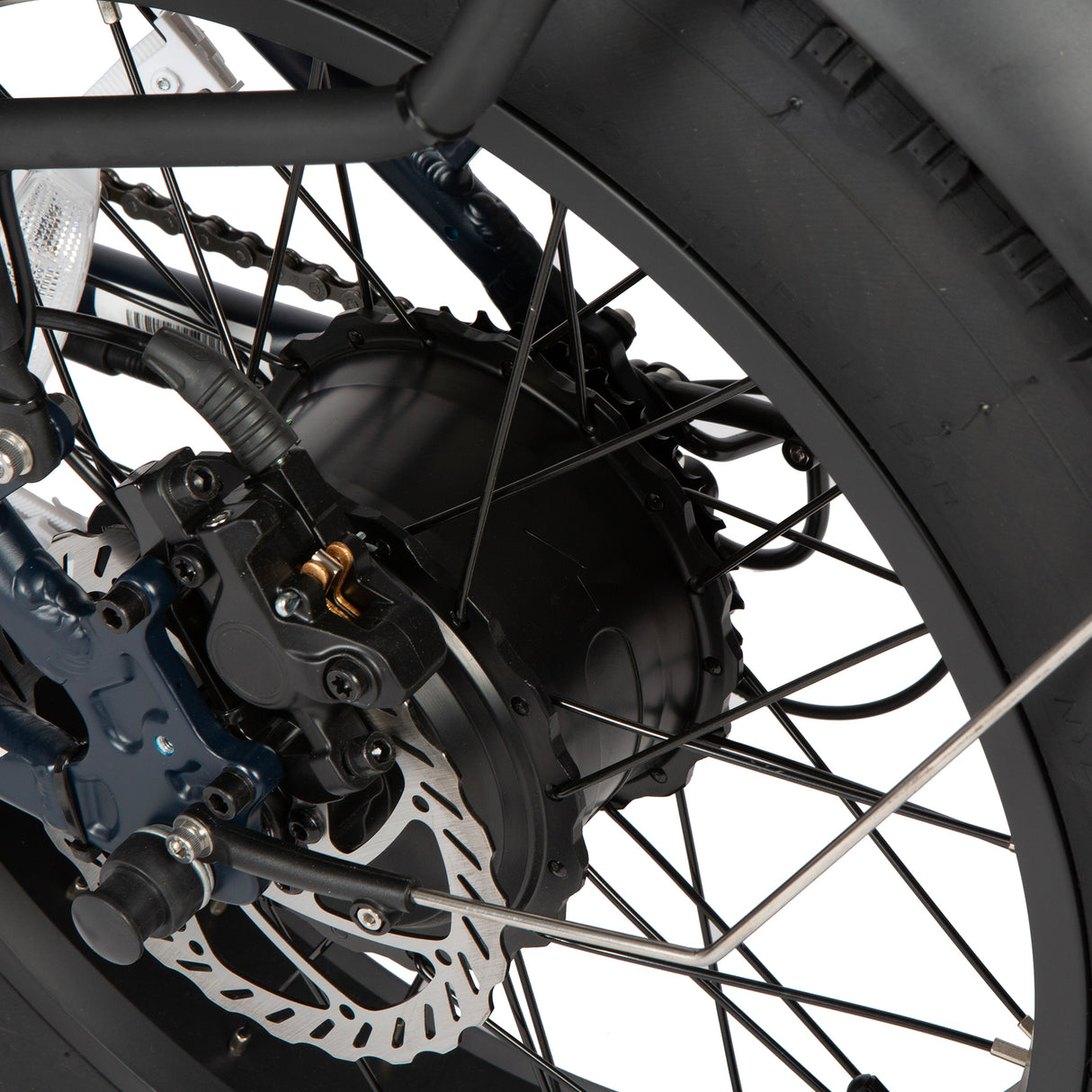

  • 500W Hub Motor With 80N.m

    A fat hub motor in the Rear wheel can crank out a continuous 500 watts of power with the ability to ratchet things up to over 750 peak watts of power for hill climbs and quicker acceleration. This motor has 80 Newton meters of torque.

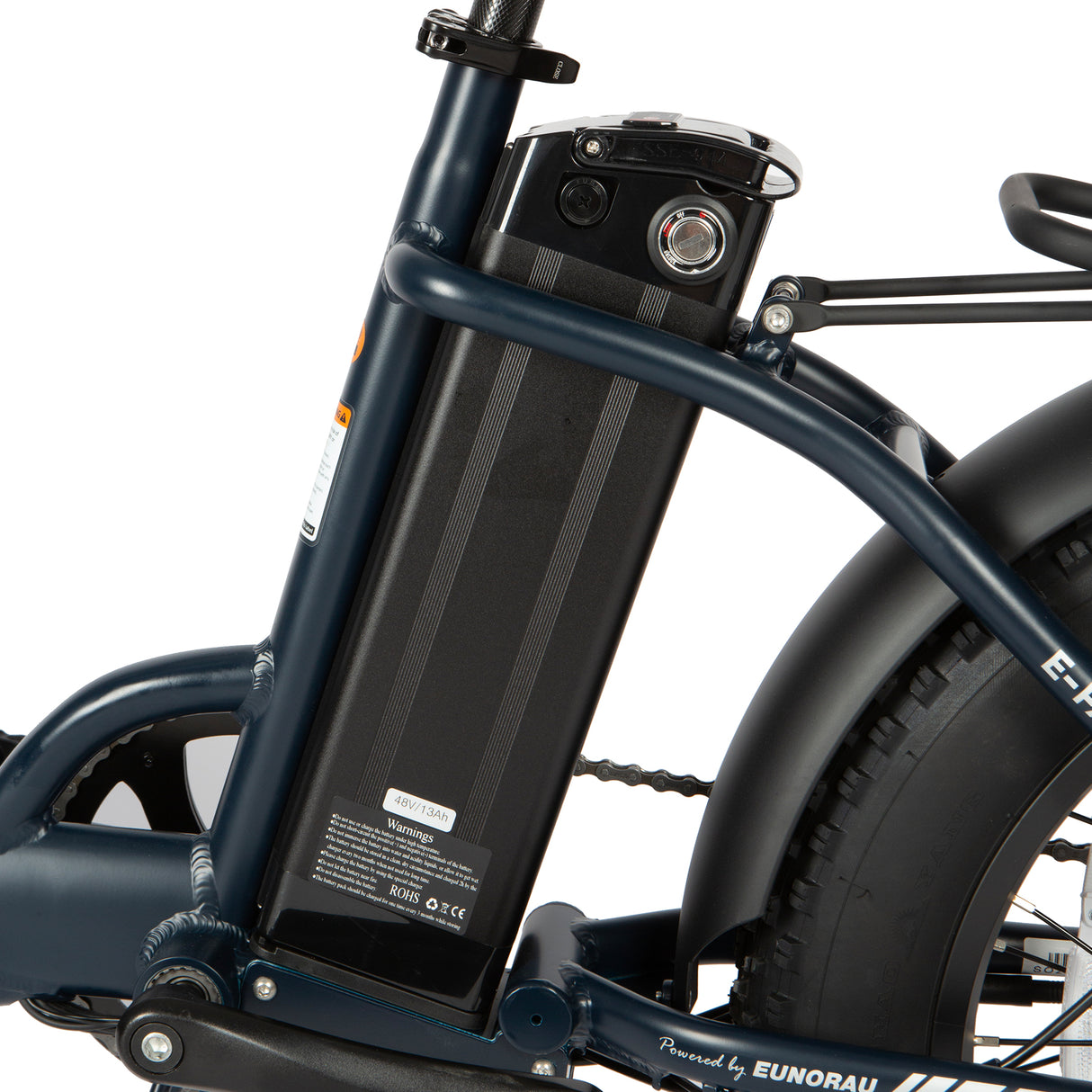

  • Battery 13AH

    Pair text with an image to focus on a product, collection or blog post. Add details on availability, style, or even provide a review.

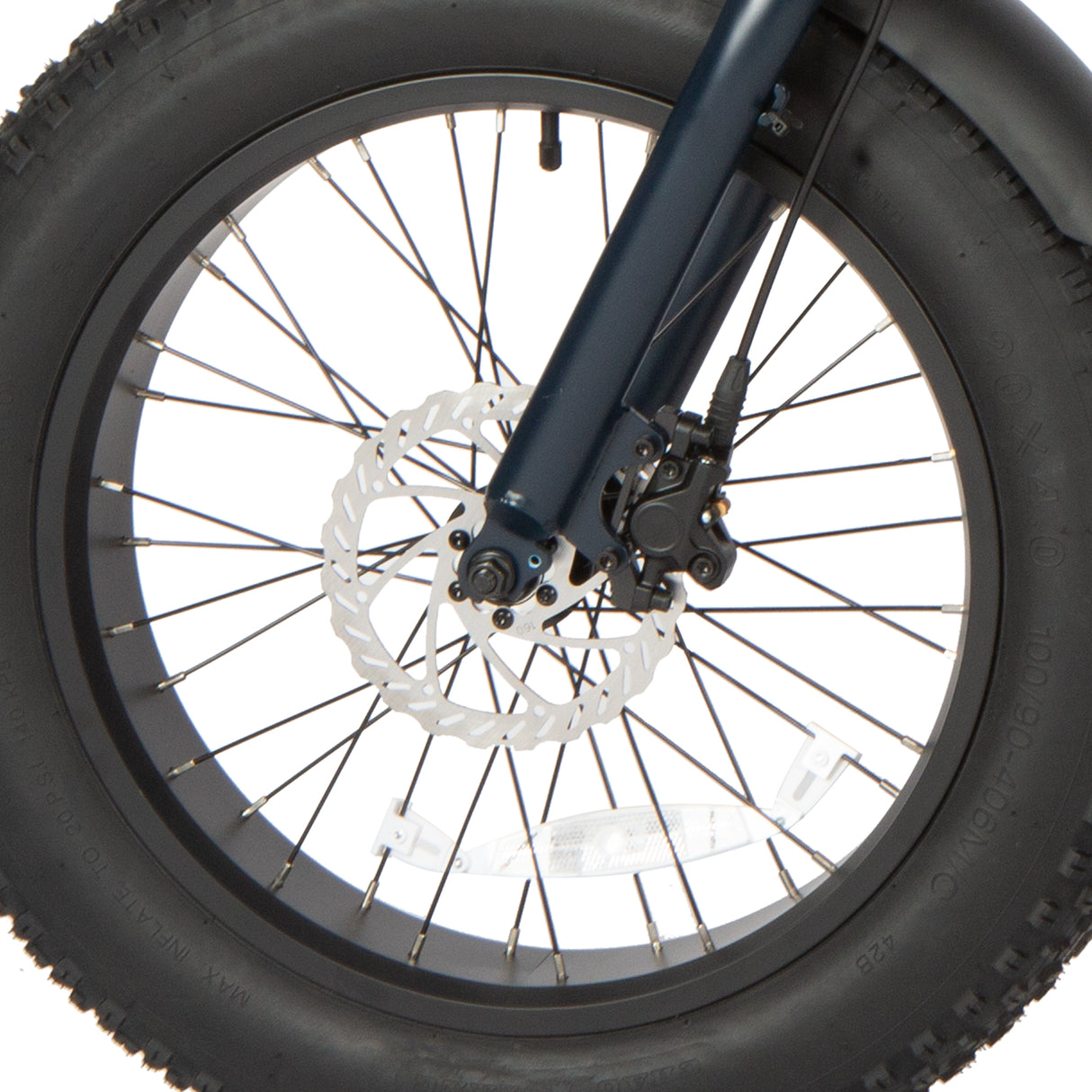

  • Hydraulic Disc Brakes

    These brakes are sensitive, but provide efficient and ample force when braking. When riding in harsh conditions; they are swift, and can be relied upon to ensure your safety

  • Shimano Derailleur 7-Speed

    High quality shimano gears and derailleurs enable you to maintain a comfortable pedalling speed, regardless of road conditions.

  • Front Light

    Every time the brakes are applied, the brake light will be activated through the main battery pack.

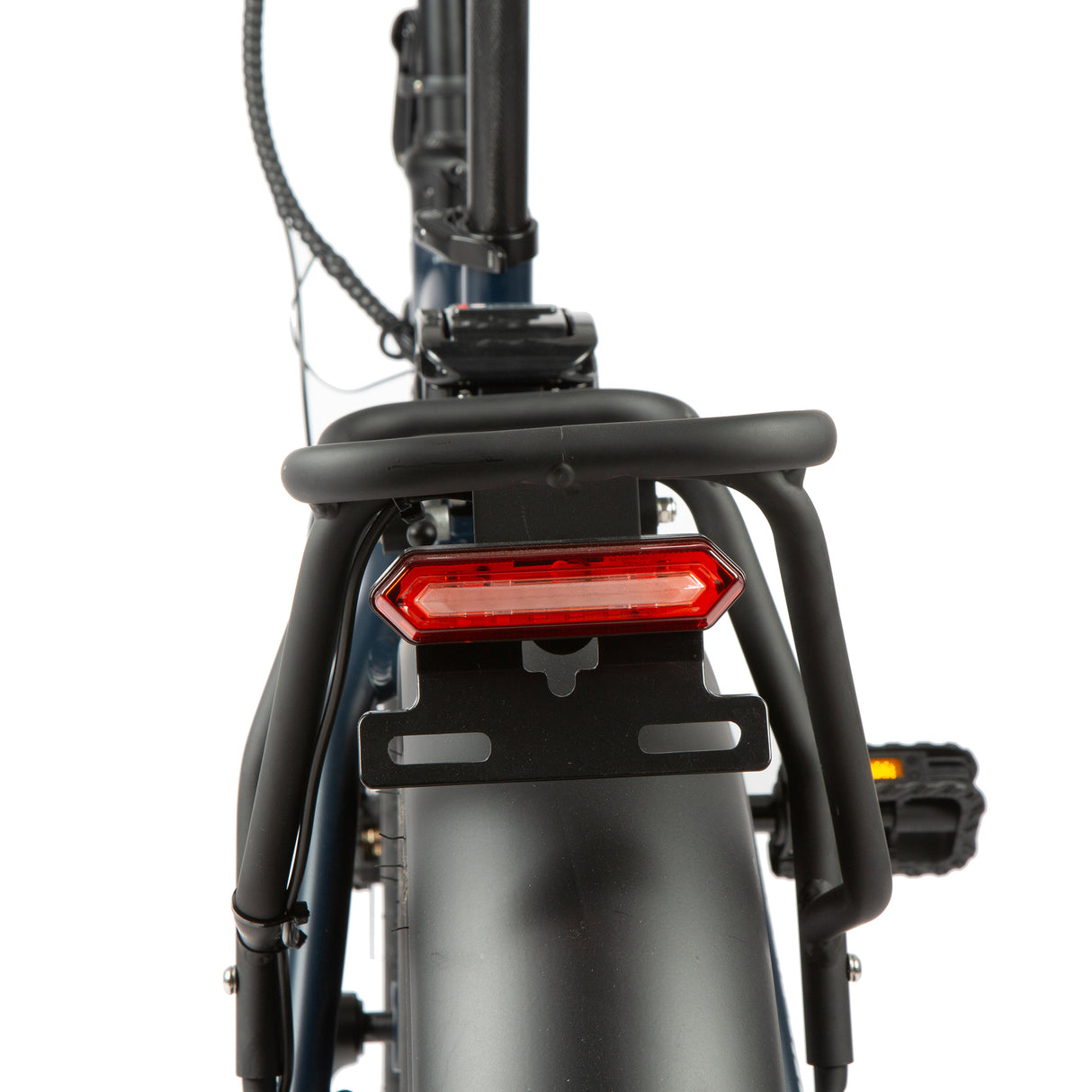

  • Rear Light

    Super bright tallight visible to motorist over 1500 feet away, brings your safety on the dark night.

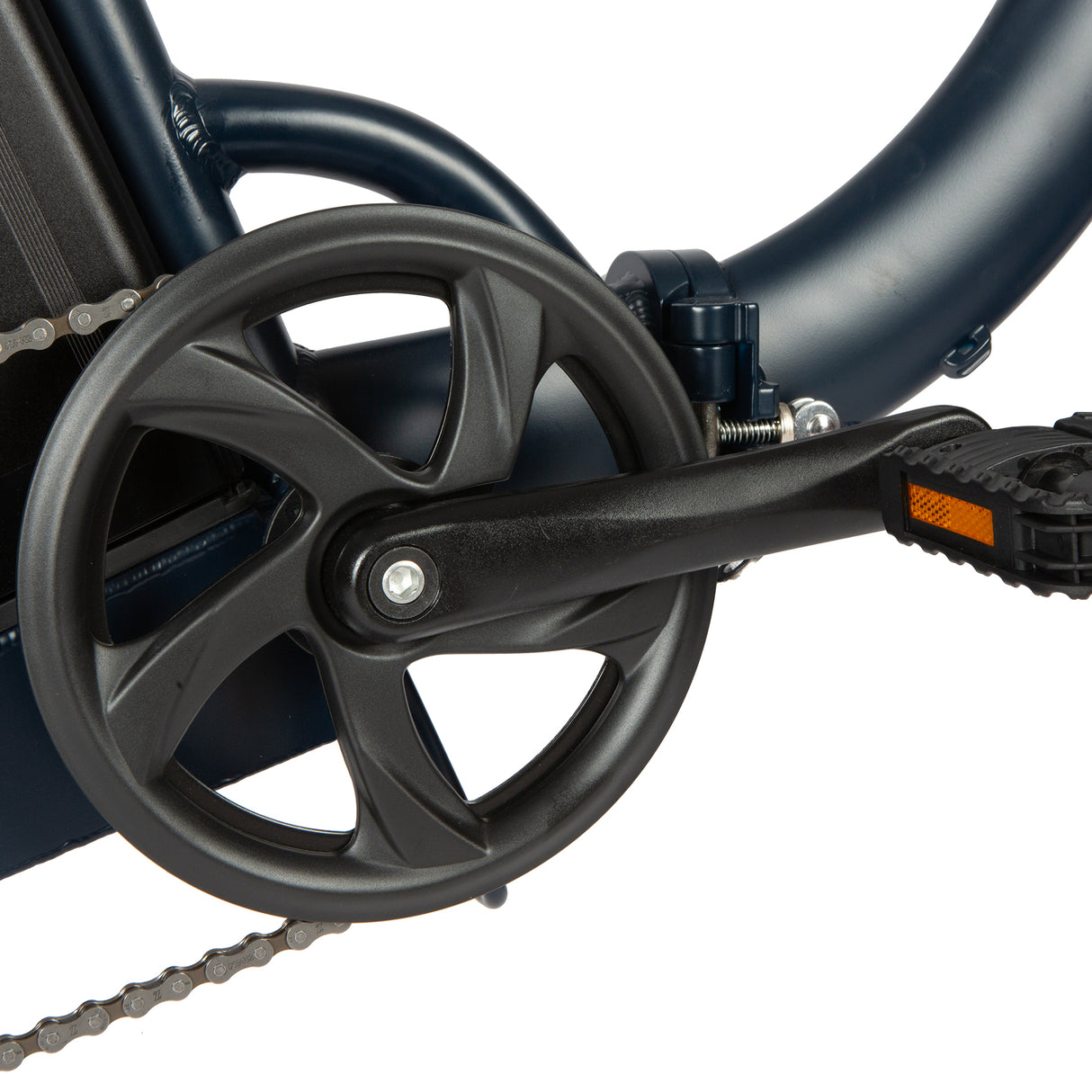

  • Chain Guard

    The chain guard on this model helps protect the chain ring teeth from strikes, while also keeping the chain locked firmly into place.

  • Fender & Rear Rack

    Carry everything you need on the rear rack, which can hold up to 25 kg (55.12 lbs), and let the fenders shield you from water and mud on your journey.

FAQs - E-FAT-STEP

What is the warranty?

Our E-FAT-STEP is powered by EUNORAU, which means it comes with a 2-year warranty policy provided by EUNORAU.

What is the return policy?

Cancellation

We accept order cancellation before the product is shipped or produced. Once the order is canceled, you will get the full refund through the original payment route. while we cannot cancel the order if the product already has been shipped out. Moreover, To prevent loss or damage when return, please do do not reject the delivered ebikeand do receive the package first, then contact us via Livechat / Phone / Email immediately, we will call the UPS/FedEx to pick up door to door and take it back. The left refund that has deducted the certain shipping cost will be applied to the original card used in the transaction. Appreciated for your kindly cooperation in advance.

Returns (if applicable)

We accept a return on products. Customers have the right to apply for return within 7 calendar days after the receipt. To be eligible for a return,customers must receive the product in 100% new, Re-sellable condition. Merchandise is not eligible for a refund if it has been assembled, ridden, worn, used, abused, damaged in any way. The merchandise must arrive complete, including warranty cards, manuals, accessories,promotional material, and in the original packaging.Customer must initiate return shipment of the merchandise within 7 calendar days after the delivery date, and pay for the shipping cost to BKRE’s warehouses located in the US/AU/EU/UK. We will finish the inspection within 5 days after receipt of the product. If the returned products are not in original condition according to Clause, we will refuse a refund.If the returned products are in original condition according to Clause, and the reasons attributable to the BKRE, we will agree to refund the full paid amount, while the reasons attributable to the Customer, we need to deduct the shipping cost first, then the left part will be refunded.

* Annotation:

1) The reasons attributable to the Customer if:

  • Customer placed wrong order or purchased wrong/unwanted product ect.
  • The product was shipped back without admittance from BKRE.
  • The product was damaged when shipping back.

2) The reasons attributable to the BKRE if:

  • Eunorau shipped out the incorrect product;
  • The product shipped was damaged or defective;
  • The product was damaged in shipping out.

Refunds (if applicable)

Progress time: 1-3 business days.
Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund. If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again.
Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted. If you’ve done all of this and you still have not received your refund yet, please contact us at service001@ebikerepairfactory.com.

Phone Num.: +1 888 291 3151 (Monday - Saturday, 12:00 pm - 8:00 pm, UTC-4)

What Types of Terrain Can E-FAT-STEP Handle?

E-FAT-STEP ebikes are designed for off-road use on rugged, unpaved surfaces, featuring wide and fat tires for enhanced stability and traction. They are well-suited for diverse terrains, including dirt trails, gravel roads, grass, sand, and light snow. E-FAT-STEP bikes perform better on rough terrains compared to those with narrow road tires, although they may face challenges on very technical mountain trails. Additionally, the E-FAT-STEP is suitable for all-season use, ensuring reliability in various conditions.

Are E-FAT-STEP E-Bikes Suitable for All Ages and Fitness Levels?

E-FAT-STEP e-bikes are designed to accommodate a wide variety of ages (recommended for riders 16 years and older) and fitness levels. The electric motor provides adjustable assistance with five levels of power, allowing riders of different abilities to customize their experience for a comfortable ride. Additionally, the maximum load capacity for the E-FAT-STEP is 330 lbs. If you have any health concerns, it’s always best to consult with a healthcare professional before embarking on a ride. Please also remember to follow any local regulations regarding e-bike use to ensure a safe and enjoyable experience.

Does my height/weight suit the E-FAT-STEP?

The recommended rider height for E-FAT-STEP is 5'6" ~ 6'1"; The total payload capacity of E-FAT-STEP is 330 lbs (not including the bike weight).

Can I transport E-FAT-STEP in a car trunk?

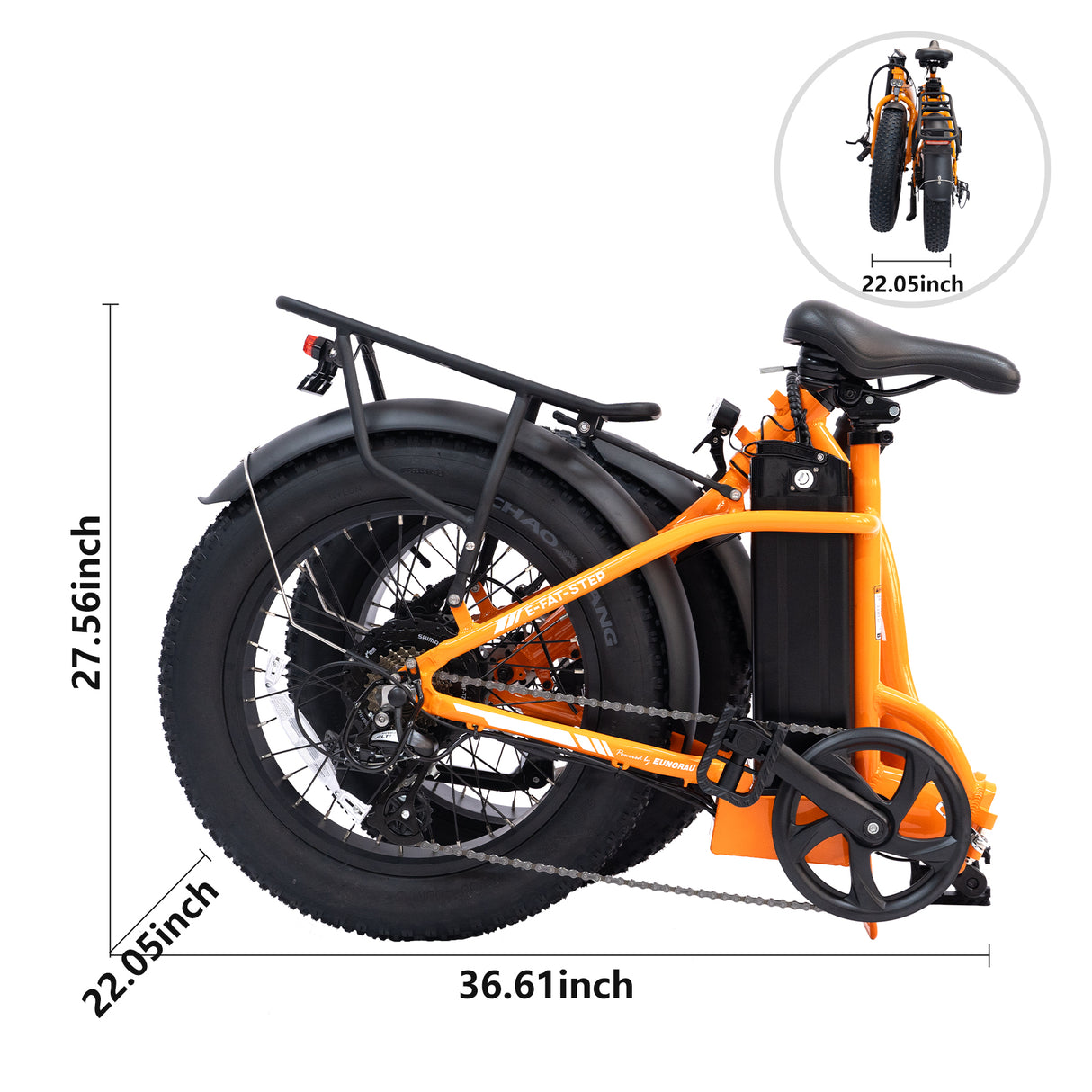

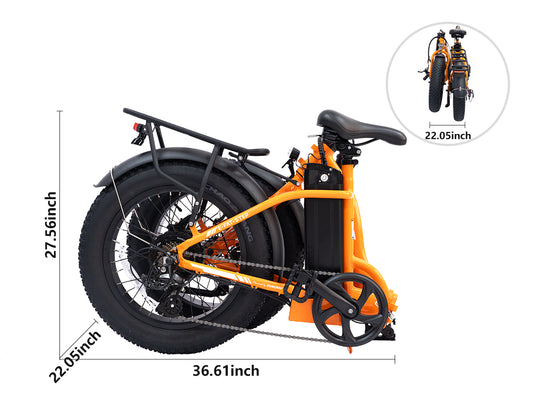

E-FAT-STEP can be folded and stored in a car trunk. Its folded dimensions are 36.61× 22.05× 27.56 inches.

Will my E-FAT-STEP arrive already assembled?

The E-FAT-STEP is partially assembled. You have to install some parts by yourself, such as the front wheel, handlebar, saddle, pedals, and front fender. You can look at the assembly video for help.

If the warranty period has expired, where can I buy repair parts?

The spare parts are already in stock at BKRE's overseas warehouses. You can purchase them here.
