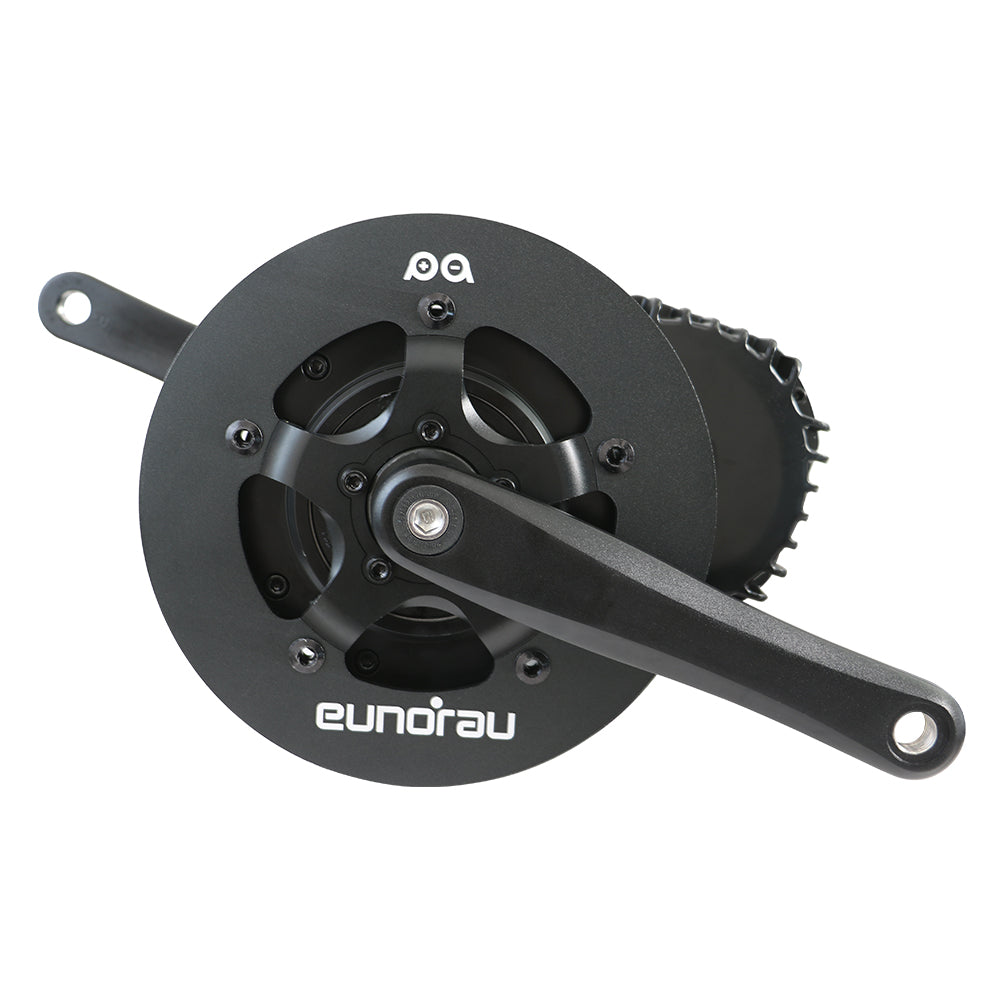

48V/52V1000W Bafang BBSHD 68mm/100mm/120mm Motor BBS03 Mid-Drive Kit M615 electric bike DIY conversion kit 10AH/14AH/17AH Samsung Cells Battery

Note:

1, Our 1000W BBSHD mid drive motor has two versions with built-in both 48V and 52V controller (*Default version - 52V, whose label also reads 48V).

We default to ship the motor with built-in 52V controller, which needs to match rated 52V battery to work.

If the battery you use is rated 48V, you need to purchase 48V version motor, please leave us a note or message when placing the order, so that we program the item well before shipout.

2, The motor default with a female Anderson Connector to connect with battery, if you need a different type of connector (like Bullet Connector, or XT-60 Connector), including add-on optional (Hailong) battery we sell, then both need to change the connector by yourself. To make it convenient, we pack a cable whose one side with a matching male Anderson connector in box.

Turn your bike into an e-bike - with Bafang motors

In addition to the normal commercial e-bikes, there are lots of conversion systems available. "Bafang" is one of the leading manufacturers in this area - both for e-components and complete systems.

Functional principle and advantages of Bafang BBS01/02/HD mid-drive motors

What means mid-drive-motor?

There are 3 different ways to mount the motor when converting your bike into an E-Bike:

• Front-wheel (hub motor)
• Rear-wheel (hub motor)
• Bottom bracket - in the "middle" (mid-motor, mid-drive motor)

Compared to the hub motor, the mid-drive motor doesn´t transmit the power directly to the wheel, but to the bicycle chain. This means, your rear bicycle gears can also be used with a motor assist, which is not only an advantage when riding uphill. Further advantages are ideal weight distribution, low center of gravity, and a very natural riding experience. Furthermore, the front and rear wheels can still be changed without any problems.

Bafang BBS motor function is very simple: The electric motor powers the front chainring with an internal gear ratio of 22:1. An integrated clutch makes it possible, that the crank arms won´t be moved while the chainring rotates forward.

Exploded view of Bafang BBSHD Motor (BBS01 and BBS02 are the same design)

This is a complete mechanical conversion kit with all the necessary parts for you and your bike!

Order| Assemble | Ride

This conversion kit contains the following components:

• 48V1000W motor with all necessary cables and fixing parts
• Speed sensor
• Original cranks from Bafang
• Original 46T chainring from Bafang( many options)
• Color display (Optional)
• Original thumb throttle from Bafang
• Bottle mount battery (many options)
• Charger 2A(3A optional)
• Brake Lever (BR-3)+Hydraulic Brake Sensor (BR-1)

And the accessories you may need:

• Gear Sensor
• Cable Brake Sensor
• Chain Wheel Spider

Order From EUNORAU advantages:

• US/EU/AU/UK Stock: ship the goods from the local warehouses directly.
• After-sales site: US maintenance point

The Bafang Official Motor Partner

This set is suitable for most bikes. Make sure it fits your bike as well, please note the following points:

1)Bottom Bracket Size:

Since this motor is available for different bottom bracket widths, please measure your bike and select afterward above. We recommend inverting the bike and measuring the frame width at the bottom bracket.

2) Bottom Bracket Diameter:

The motor axle has a diameter of 33,5 mm and is installed instead of the bottom bracket. If your bottom bracket width is more than 75 mm, it´s possible that your bottom bracket has a bigger diameter (press-fit bearings) and you need an adapter. We recommend removing your bottom bracket, then you can easily measure the diameter. If it´s about 33/34 mm - no adapter is required. Please send a photo to info@eunorau-ebike.com if you are not sure - we will help you!

Bafang BBS advantages:

• The motor is very silent
• Pedaling resistance is very low, even without system operation
• Bafang BBS motors are very low maintenance
• Spare parts available and easy to change for yourself (many clips on YouTube for assistance)
• Lots of system components are selectable (chainrings, display, battery, ...)

Technical comparison of our 5 different Bafang motors:

Technical comparison of our 3 different Battery:

From Bike to E-Bike - how to do?

The conversion is very easy and can be done by anyone with a little manual skill. Briefly described:

• The bottom bracket has to be removed
• Mounting Bafang motor by fixing with triangle and both lockrings
• Battery fixing on the bottle holder
• Connecting the cables

In this video have shown this in detail:
