Note: The M325 drive systems with CAN protocol, this motor is only compatible with the BT F22.960. C battery. Bafang M625/M325 drive systems can only be used on vehicles intended for off-road use and designed to travel on unpaved surfaces. Please make sure to comply with local laws and regulations.
Base Parameter: |

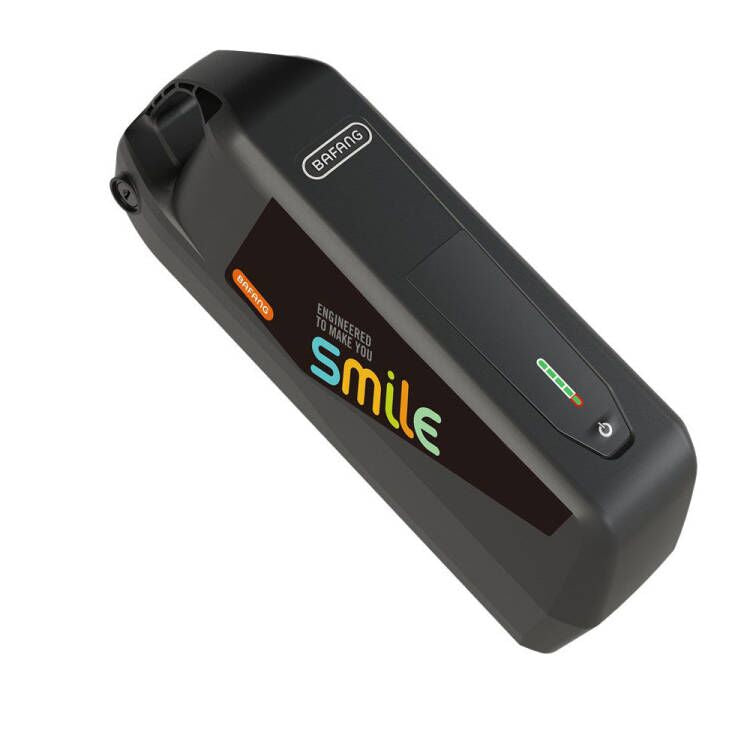

BT F22.960. C |
Nominal Voltage: |
50.4 DCV |
Nominal Capacity: |
19.6Ah |
Rate Capacity |
19Ah(@1C/25℃ Discharge) |
Energy |
960Wh |
Continuous Charge Current |
4 A |
Charging time |
6.5 with 4A Charger |
Storage( At 35% SOC &-10~35℃) |
6 Months (need to charge) |
Cycle Life |
600 (70%SOC(@25±5°C, Charge @0.2C and discharge@0.5C)) |
Riding Distance |
Minimum 80km( 1000W motor) |
Dimension(L*W*H) |
375*100*149mm(±1mm) |
Weight |
Appr. 6.0 KG |
Charger |
Special 5P charger |
Certification |
UL/UN38.3/MSDS/13849 |
Warranty |
12 Months |
Operating voltage: |
100 –240 ACV, 50/60 Hz |
Rated output voltage: |
58.8 V |
Output current: |
4 A ± 0.2 A |
Minimum battery charge voltage: |
37.8 ± 2 V |
Temperature protection: |
NTC < 0 ± 3 °C or NTC > 65 ± 3 °C |
AC Connector: |
Meet local standard |
Certificate: |
FCC, UL62368, RoHs |
Error description |
Cause |
Solution |
The operating display does not light up. |
The mains plug not properly |
Check all connections and whether the charger is properly connected to the power supply. |
The charging indicator is not lighting up. |
The battery may have a |
Contact the manufacturer or your |
The charging indicator is not lighting up permanent red. |
The battery may have a |
Contact the manufacturer or your |
a, It is recommended to charge the battery after use. But never fully discharge the battery.
b, When the battery is not used for storage, the recommended capacity of the battery should be between 60%-80%
c, Do not charge the battery longer than the charging time specified
d, Read the indications printed on the external label of the battery before using the battery.
